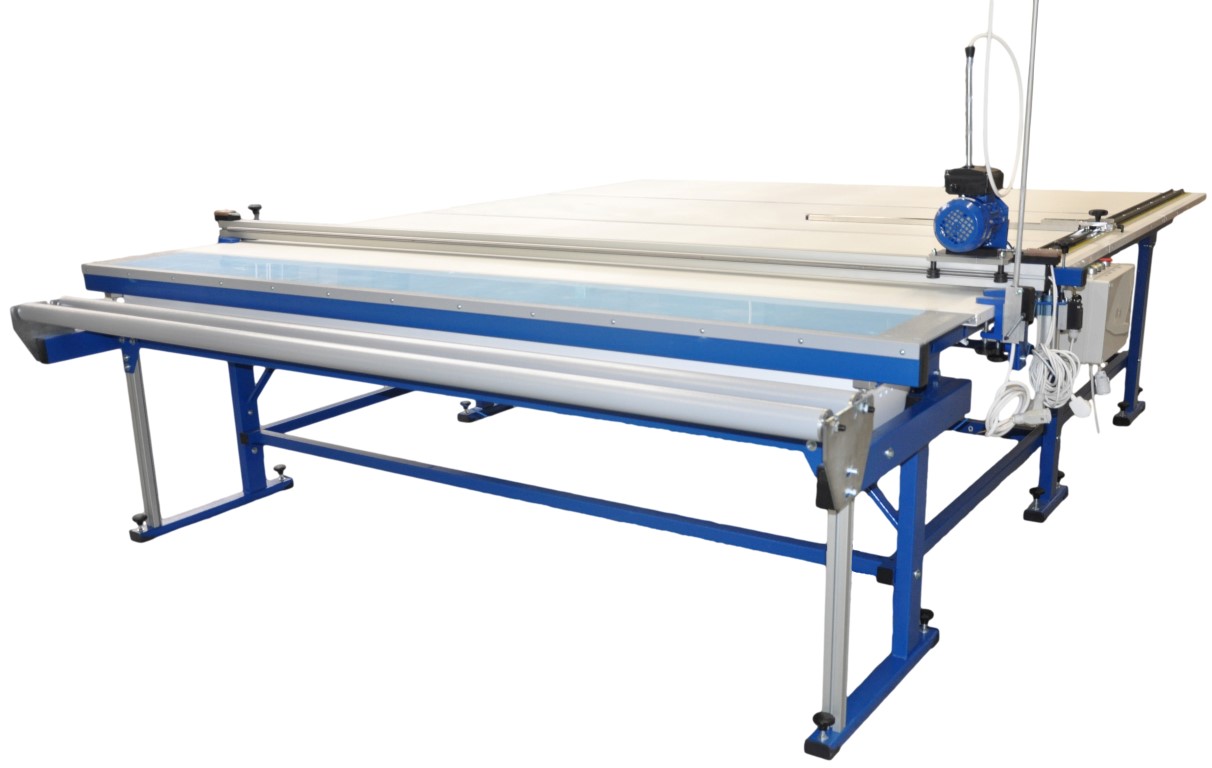

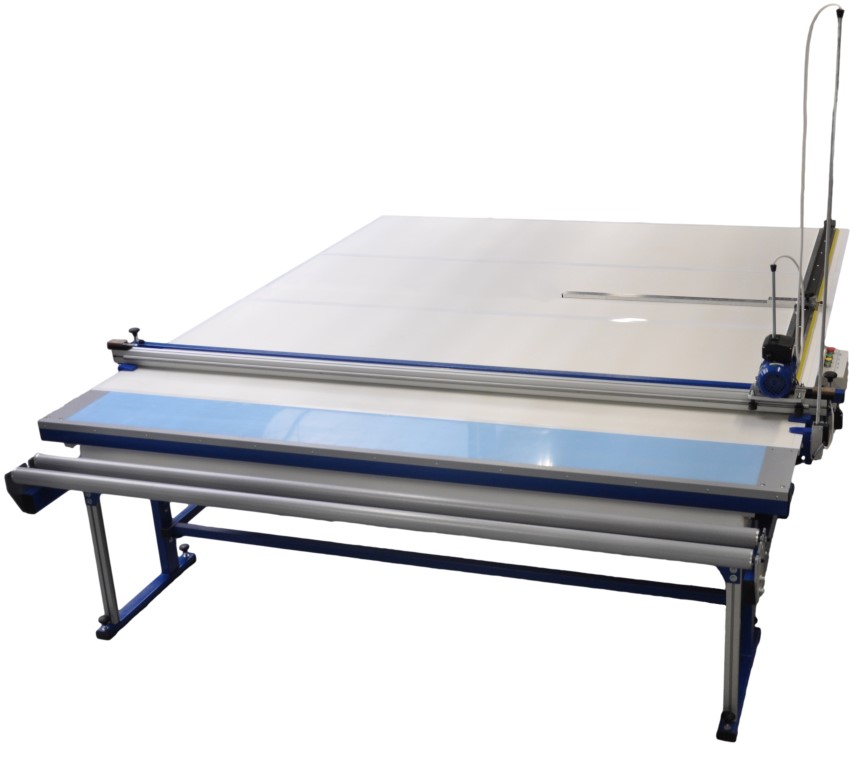

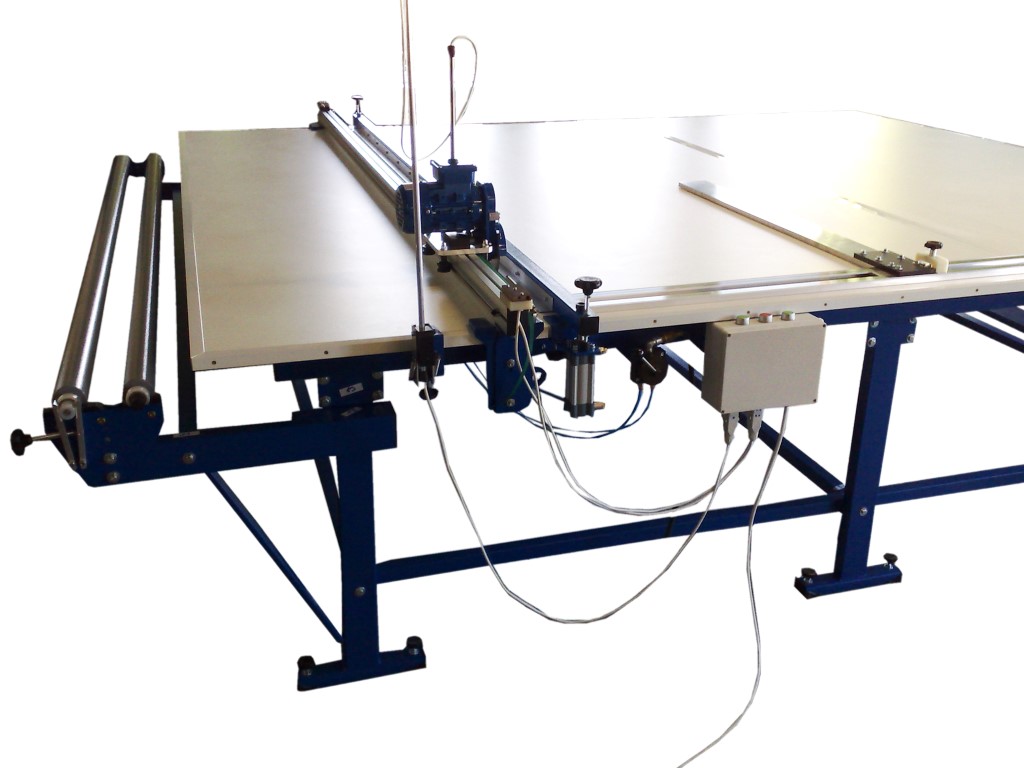

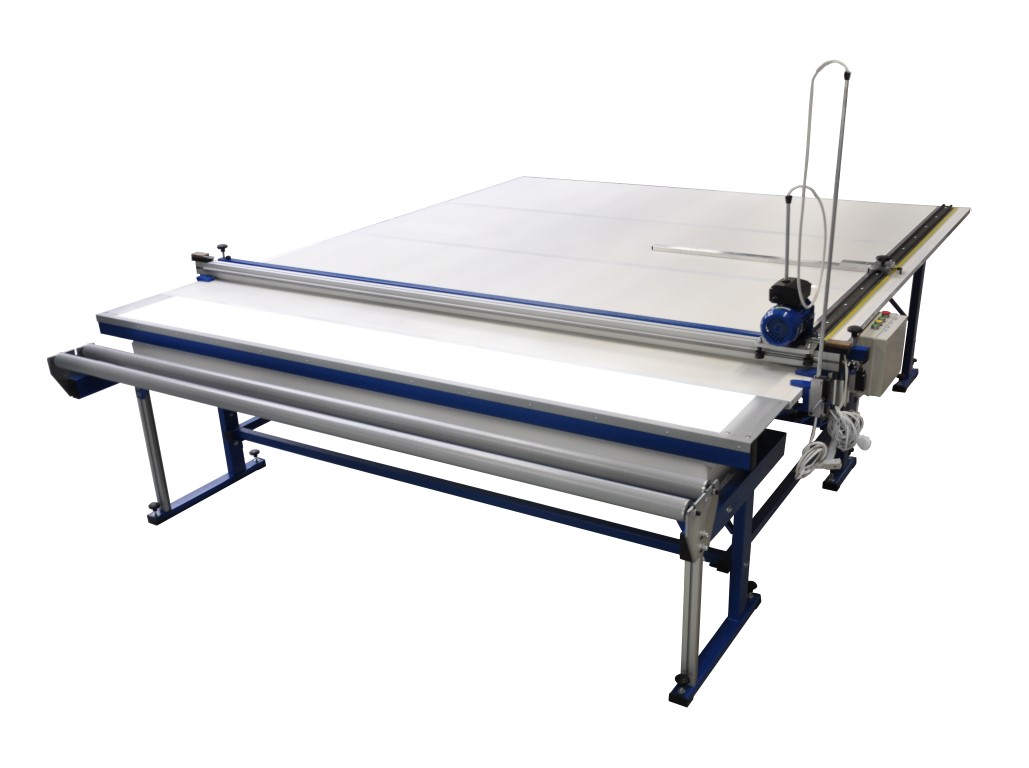

UK-1 MAX cutting table for sun protector

This cutting table consists of a very stable structure based on closed steel profiles. The working plate consists of 25 mm laminated chipboard.
The table is protected with aluminium corners, powder coated white.
With the help of adjuster screws the table height and its horizontal position can be set.

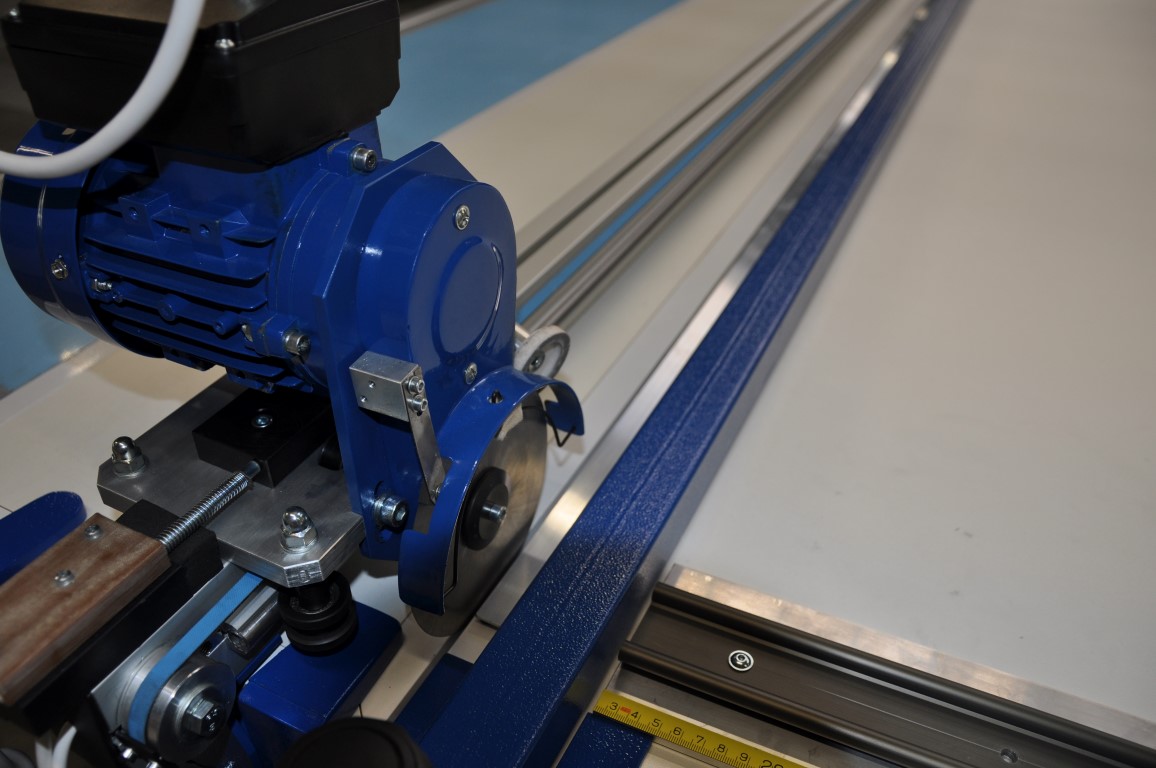

The cutting knife is fixed to the working plate. Another advantage includes the lack of idle run (cutting occurs in both directions). Activation of the "NOT-AUS" button on the controller stops the end cutter, allowing a change in direction before continuing cutting.
The equipment includes a pneumatic clamping line with a strong and permanent holder.
The clamping line can be adjusted by joystick.
The cutting table is suitable for cutting all materials needed for manufacturing roller blades as well as for all sorts of textiles, such as carpets, rugs, mats and other floor coverings.

Here is a PDF file with an overview of all the specifications.
